RAL9010 Zinc 60g 275g Coloured Gi Sheets Sheet Plate PPGL Roofing Sheet

Name: RAL9010 Zinc 60g 275g Coloured Gi Sheets Sheet Plate PPGL Roofing Sheet
Brand: RAYMOND
Price: 500 USD

RAL9010 Zinc 60g 275g Coloured Gi Sheets Sheet Plate PPGL Roofing Sheet Manufactures

Brand Name : RAYMOND

Certification : ISO14000

Place of Origin : China

MOQ : 50mt

Price : USD500-800/MT

Payment Terms : L/C, T/T, Western Union, MoneyGram, D/A, D/P

Supply Ability : 10000MT/ month

Delivery Time : 45days

Packaging Details : standard export packing

Name : Pre-painted steel coil

Zinc Coating : 60g/㎡

Top Surface : 20 Micron Polyester + 5 Micron Primer

Back Surface : 7 Micron + 5 Micron Primer.

Thickness : 0.86mm

Width : 1250mm

Color : RAL 7012

Application : Container Plate

Surface treatment : Coated

Contact Now

RAL9010 Color Zinc 60g -275g PPGI pre painted galvanized coils precoated steel sheet color coated coil

PPGI (PPGL) Features:

Product Name	Cold Rolled Steel Coils / PPGI Prepainted Steel Sheet / zinc Aluminium Roofing Coils From Shandong
Color	RAL Standard Color
Material	SGCC/CGCC/DX51D+Z
Wall Thickness	0.12MM~2MM
Outer Diameter	600MM~1250MM
Standard	JIS G3302, JIS G3313,ASTM A653,GB/T2518-88, GB11253-9, BS, etc.
Zinc Coating	Z20-Z275,AZ30-AZ150
Technique	Cold Rolled Steel Coil
Packing	3 layers of packing. Inside is craft paper, Middle is water plastic film and outside GI steel sheet to be covered by steel strips with lock, with inner coil sleeve.
Package weight	2 -6 ton per coil
Origin	Tianjin China
Certificates	API ISO9001-2008,SGS.BV
Delivery Time	Usually within 10-45 days after receipt of advance payment

MTC of pre painted galvanized steel coil

COMMODITY:		PRE-PAINTED ZINC STEEL SHEET	Contract NO.		HYEXP2010-07-10A				Date:	SEPTEMBER-17-2010
Steel Grade:		ACC JIS G3312, SOFT MATT	Condition of Supply		PRE-PAINTED ZINC STEEL SHEET				Certificate NO.	100710A
No.	Heat No.	Size(mm)	Zinc Coating:	Color side A	Coat property					Steel property
					Pain thick (μm)	T-Bend (T)	Impact (J)	Gloss (GU)	Pencil hard	YS. Re Mpa	UTS. Rm Mpa	EL. A %



1	0710225	0.30X800 MM RAL5012	Z-60	RAL 5012/25 microns	25	3	9	50	3H	360	380	35
2	0710296	0.30X800 MM RAL8004	Z-60	RAL 8004/25 microns	25	3	9	55	3H	365	373	37
3	0710246	0.25X800 MM RAL5012	Z-60	RAL 5012/25 microns	25	3	9	50	3H	358	375	36
4	0710288	0.25X800 MM RAL8004	Z-60	RAL 8004/25 microns	25	3	9	55	3H	355	368	36

Application of Pre Painted Aluminum Coil:

1. Construction:roof for steel structure workshop,airport,storeroom

2. Shipbuilding industry

3. Vehicle manufacturing

4. Furniture industry

5. Electric industry etc.

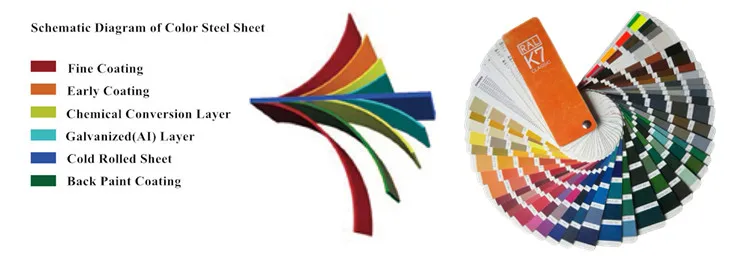

Product Picture

RAL9010 Zinc 60g 275g Coloured Gi Sheets Sheet Plate PPGL Roofing Sheet
